Auto parts for CAMPING CAR   ---- Made in TAIWAN ----



OEM/ ODM are welcome.

We are professional and have technology to design and develop auto parts for CAMPING CAR
    Successed products:
    (1) Switch panel
    (2) Ceiling light
    (3) 2 volts gauge
We have good suppliers to make high quality auto parts:
    (1) Auto LED lamp with E-MARK passed :
         Trailer light, Scania combination light, Side marker light, Highmount stoplamp, Auxiliary stop light, ...
    (2) LED Interior lights
    (3) LED light bar
    (4)
Inverter & Charger

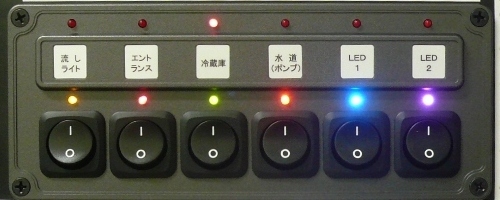

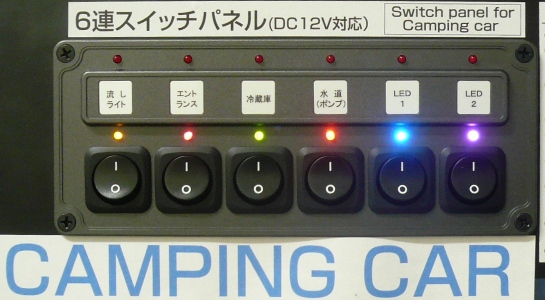

Switch panel   (Size: 206×83×31.6 mm)


  Red LED will light when fuse broken.


  Change fuse.

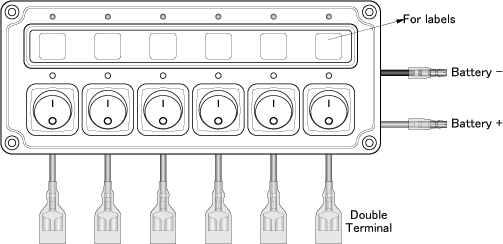

  Can control 6~12 lamps by 6 switches. (We use 6 double terminals.)


  Specification :


1.

Application

Control ON/OFF for
6~12 home appliances

6.

Working Power

DC12V

2.

Switch

ON/OFF Switch *6pcs

7.

Panel Material

ABS

3.

Maximum load current

MAX 25 AMP

8.

Cover Material

ABS

4.

Fuse inside

7.5A * 6pcs

9.

Net Weight

205g

5.

Panel Size

W206 x H83 x D31.6 mm

10.

Hole size

W185 x H68 mm




LED Ceiling light   (Size: Φ70mm x T 20.7mm)

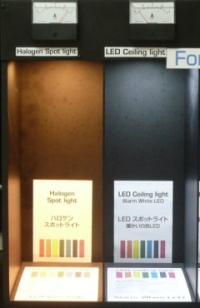

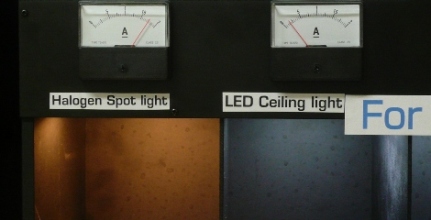

  Compare the currrent and brightness between Halogen spot light and LED ceiling light

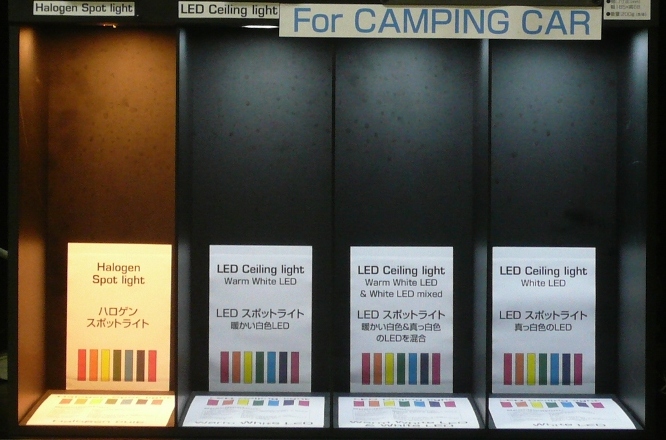

  3 types of LED ceiling light


  Specification :


1.

Light Source

White LED (4chips inside)
x 6pcs

6.

Size

Φ70mmxT 20.7mm
(rear case size:Φ 55mm)

2.

LED Lens Angle

120°

7.

Shell Material

SATIN NICKEL

3.

Luminance

24,000 mcd

8.

Cover Material

Milky glass

4.

Working Power

DC12V

9.

Wire length

15cm

5.

Power Consumption

2.0W

10.

Net Weight

60+ 1g





Please contact  leigh@ezwalker.com.tw  for detail information.
